CFBS45A
UVLEDTEK CFBS45A is a LED chip with UVB band light output, flip-chip structure and AuSn electrode, which can be widely used in plant growth, medical phototherapy, optical sensors, biological analysis/detection and other areas.
Features
• UVB LED chip, peak wavelength 295-315nm
• Flip-chip structure
• AuSn electrode
• Instant full-intensity power output
• Unique and compact design
• Competitive product quality and price
Specification
Mechanical Specification
| Item | Parameters |
| Chip Length | 1178±30um |
| Chip Width | 1178±30um |
| GAP Width | 150±5um |
| Chip Thickness | 400±30um |
| Chip Structure | Flip-chip structure |
| Electrode | Both N and P are Ausn electrodes. |
Electrical / Optical Characteristics Parameters
• Electrical / Optical Characteristics (Ta = 25℃ , RH=30%)
| Item | Parameters |
| Forward Voltage (VF) | If=350mA, 5-7V |
| Peak wavelength (WLP) | If=350mA, 295-315nm |
| Radiometric Power (Po) | If=350mA, 50-120mW |
| Spectra Half Width (HL) | If=350mA, Typ.11nm, Max.13nm |
• Sorting BIN Specifications
| SPEC | WLP (nm) |
| W34 | Rating: 295~300 |
| W35 | Rating: 300~305 |
| W36 | Rating: 305~310 |
| W37 | Rating: 310~315 |
| SPEC | LOP (mW) |
| P106 | Rating: 50~60 |
| P107 | Rating: 60~70 |
| P108 | Rating: 70~80 |
| P205 | Rating: 80~100 |
| P206 | Rating: 100~120 |
| SPEC | Vf (V) |
| V51 | Rating: 5.0~5.5 |
| V52 | Rating: 5.5~6.0 |
| V53 | Rating: 6.0~6.5 |
| V54 | Rating: 6.5~7.0 |
| V11 | Rating: 5.0~5.1 |
| V12 | Rating: 5.1~5.2 |
| V13 | Rating: 5.2~5.3 |
| V14 | Rating: 5.3~5.4 |
| V15 | Rating: 5.4~5.5 |
| V16 | Rating: 5.5~5.6 |
| V17 | Rating: 5.6~5.7 |
| V52 | Rating: 5.7~6.0 |

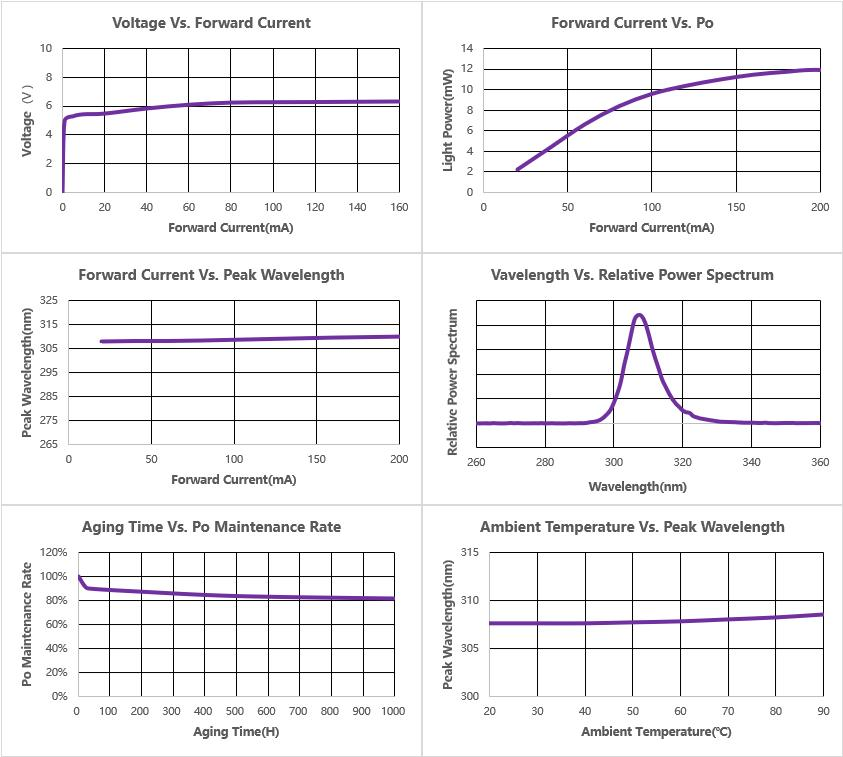

Characteristic Curve
Table Overview for UVLEDTEK
UV-B LED Chip
| Item | CFBS20M | CFBS20A | CFBS45A |
| Voltage (V) | 5~7 | 5~7 | 5~7 |
| Power (mA) | 40 | 100 | 350 |
| Optical Power (mW) | 4~20 | 10~30 | 50~120 |
| Wavelength (nm) | 295~315 | 295~315 | 295~315 |
| L50@60°C (hr) | 20000 | 20000 | 20000 |
| Spectra Half Width (nm) | Max.13 | Max.13 | Max.13 |
| Dimensions (um) | 230*536*280 | 546*546*340 | 1178*1178*400 |
| More Details | Learn More | Learn More | Learn More |
