CFAS45A
UVLEDTEK CFAS45A is a high-efficiency, high-power output UVC LED chip with a flip-chip structure and 40-125mW optical power. It can be widely used in sterilization, medical phototherapy, optical sensors, biological analysis/detection and other fields.
Features
• LED chip of UVC band
• Flip structure
• AuSn electrode
• Light radiometric power 40-125mW
• Peak wavelength 260-285nm
• Stable and reliable working performance
• Excellent product quality and long working life
• Environmental protection and energy saving
Specification
Mechanical Specifications
| Item | Parameters |
| Chip Length | 1188±30um |
| Chip Width | 1188±30um |
| GAP Width | 150±5um |
| Chip Thickness | 400±30um |
| Chip Structure | Flip-chip structure |
| Electrode | Both N and P are Ausn electrodes. |
Electrical / Optical Characteristics Parameters
• Electrical / Optical Characteristics(Ta = 25℃, RH=30%)
| Item | Parameters |
| Forward Voltage (VF) | If=350mA, 5-7V |
| Peak wavelength (WLP) | If=350mA, 260~285nm |
| Radiometric Power (Po) | If=350mA, 40~125mW |
| Spectra Half Width (HL) | If=350mA, Typ. 11nm, Max. 13nm |
• Sorting BIN Specifications
| SPEC | WLP(nm) |
| W01 | Rating: 260~270 |
| W02 | Rating: 270~280 |
| W13 | Rating: 280~285 |
| SPEC | LOP(mW) |
| P105 | Rating: 40~50 |
| P106 | Rating: 50~60 |
| P107 | Rating: 60~70 |
| P108 | Rating: 70~80 |
| P205 | Rating: 80~100 |
| P255 | Rating: 100~125 |
| P256 | Rating: 125~150 |
| SPEC | Vf(V) |
| V51 | Rating: 5~5.5 |
| V52 | Rating: 5.5~6 |
| V1B | Rating: 6.0~6.1 |
| V1C | Rating: 6.1~6.2 |
| V1D | Rating: 6.2~6.3 |
| V1E | Rating: 6.3~6.4 |
| V1F | Rating: 6.4~6.5 |
| V53 | Rating: 6.0~6.5 |
| V54 | Rating: 6.5~7 |

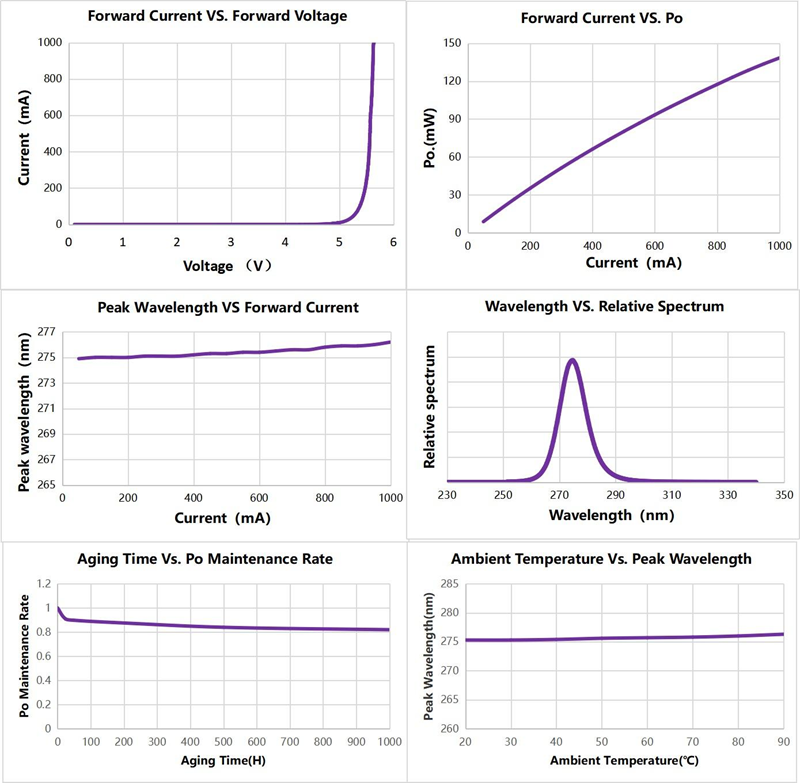

Characteristic Curve
Table Overview for UVLEDTEK
UV-C LED Chip
| Item | CFAS20A | CFAS20M | CFAS45A |
| Voltage (V) | 5~7 | 5~7 | 5~7 |
| Power (mA) | 100 | 40 | 350 |
| Optical Power (mW) | 10~60 | 4~20 | 40~125 |
| Wavelength(nm) | 260~285 | 260~285 | 260~285 |
| L50@60°C (hr) | 20000 | 20000 | 20000 |
| Spectra Half Width(nm) | Max.13 | Max.13 | Max.13 |
| Dimensions (um) | 550*550*340 | 230*536*280 | 1188*1188*400 |
| More Details | Learn More | Learn More | Learn More |
