LS2MHAC
UVLEDTEK LS2MHAC is a focused, small-angle package UVC LED SMD with 30° radiation angle, high reliability, long life, environmental protection and energy saving features. It is widely used in sterilization and disinfection, medical phototherapy, optical sensors, bioanalysis / detection and etc.
Features
• 30° radiation angle
• Optical power 6-15mW
• UV-C band SMD, peak wavelength 260-280nm
• Using industry-leading packaging technology
• Durable product material
• Worry-free long working life, up to 20000h (L50)
Specification
Device Structure

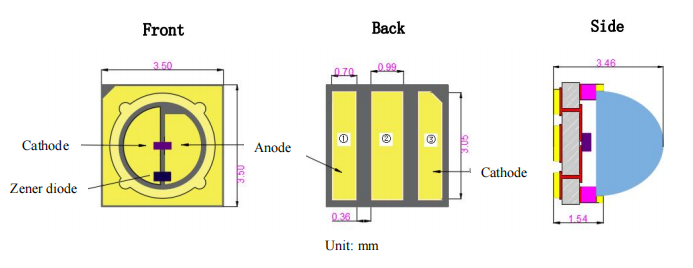

• Device Dimension

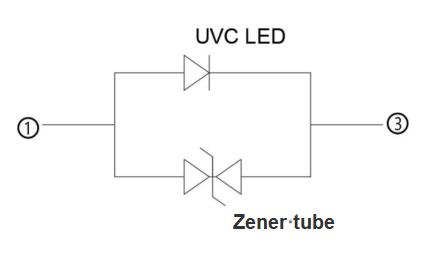

• Electrical Internal Circuit
Electro-Optical Parameters
• Photoelectric Parameters and SPEC Range @ 40 mA (Ta = 25 ℃, RH = 40%)
| Item (Symbol) | Parameters |
| Peak wavelength (WLP) | If=40mA, 260~280nm |
| Spectra Half Width (Δ λ) | If=40mA, 7~13nm |
| Optical Power (Po) | If=40mA, 6~15mW |
| Forward Voltage (Vf) | If=40mA, 5~7V |
| Radiation Angle (2θ 1/2) | If=40mA, 20, 30, 40 2θ½ Deg |
| Reverse Current (Ir) | Vr=5V, 0~1μA |
| Thermal Resistance: Rth (j-s) | If=40mA, ≤20℃/W |
• Wavelength Bin Structure:
| Bin Code | Range (nm) |
| W01 | 260~270 |
| W02 | 270~280 |
• Optical Power Bin Structure:
| Bin Code | Range (mW) |
| P024 | 6~8 |
| P025 | 8~10 |
| P053 | 10~15 |
• Voltage Bin Structure:
| Bin Code | Range (V) |
| V11 | 5.0~5.1 |
| V12 | 5.1~5.2 |
| V13 | 5.2~5.3 |
| V14 | 5.3~5.4 |
| V15 | 5.4~5.5 |
| V16 | 5.5~5.6 |
| V17 | 5.6~5.7 |
| V18 | 5.7~5.8 |
| V19 | 5.8~5.9 |
| V1A | 5.9~6.0 |
| V1B | 6.0~6.1 |
| V1C | 6.1~6.2 |
| V1D | 6.2~6.3 |
| V1E | 6.3~6.4 |
| V1F | 6.4~6.5 |
| V1G | 6.5~6.6 |
| V1H | 6.6~6.7 |
| V1I | 6.7~6.8 |
| V1J | 6.8~6.9 |
| V1K | 6.9~7.0 |

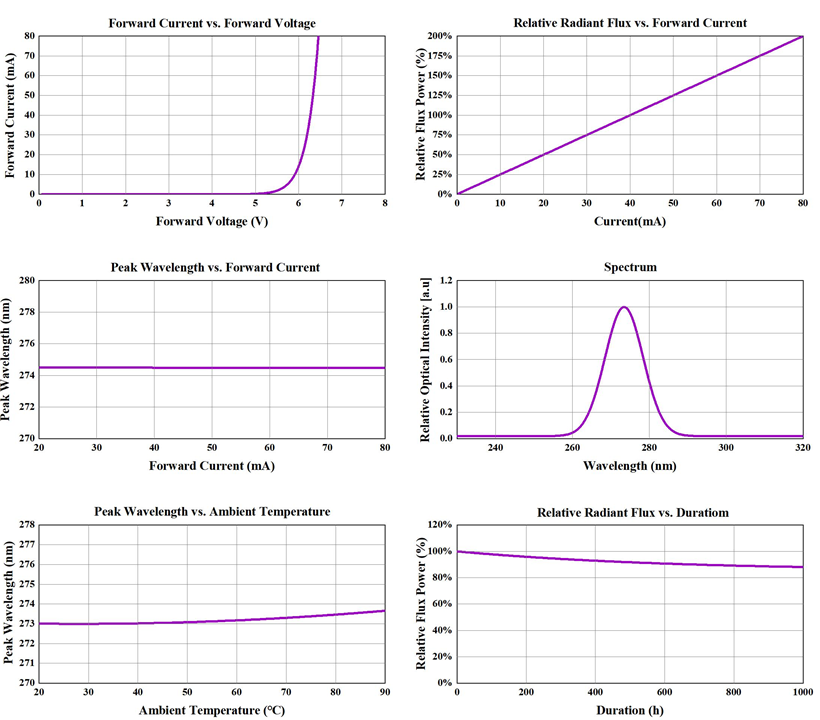

Characteristic Curve
Table Overview for UVLEDTEK
UV-C SMD
| Item | LS2MHAC | LS2AHAC | LS4AHAC |
| Voltage (V) | 5~7 | 5~7 | 5~7 |
| Power (mA) | 40 | 100 | 350 |
| Optical Power (mW) | 6~15 | 15~50 | 50~175 |
| Wavelength (nm) | 260~280 | 260~280 | 260~280 |
| Radiation Angle | 20, 30, 40 2θ½ | 20, 30, 40 2θ½ | 20, 30, 40 2θ½ |
| More Details | Learn More | Learn More | Learn More |
| Item | LS2MHAA | LS2AHAA | LS4AHAA |
| Voltage (V) | 5~7 | 5~7 | 5~7 |
| Power (mA) | 40 | 100 | 350 |
| Optical Power (mW) | 6~15 | 15~50 | 50~175 |
| Wavelength (nm) | 260~280 | 260~280 | 260~280 |
| Radiation Angle | 50, 60, 70 2θ½ | 50, 60, 70 2θ½ | 50, 60, 70 2θ½ |
| More Details | Learn More | Learn More | Learn More |
| Item | LS2MQBB | LS2AQBB | LS4AQHB |
| Voltage (V) | 5~7 | 5~7 | 5~7 |
| Power (mA) | 40 | 100 | 350 |
| Optical Power (mW) | 6~15 | 15~50 | 50~175 |
| Wavelength (nm) | 260~280 | 260~280 | 260~280 |
| Radiation Angle | 110, 120, 130 2θ½ | 110, 120, 130 2θ½ | 110, 120, 130 2θ½ |
| More Details | Learn More | Learn More | Learn More |
