LS2AHAC
UVLEDTEK LS2AHAC is a UVC LED SMD with a small light output angle of 30°, 3535 package, and 15-50mW optical power. It has the characteristics of high reliability, long life up to 20,000h (L50), environmental protection and energy saving. It is particularly suitable for scenarios requiring UVC LED sterilization and disinfection, such as medical phototherapy, optical sensors, biological analysis/detection and other fields.
Features
• 30° radiation angle
• Optical power 15-50mW
• UV-C band SMD, peak wavelength 260-280nm
• Advanced chip packaging technology
• Stable and reliable quality
• Product materials are carefully selected
Specification
Device Structure

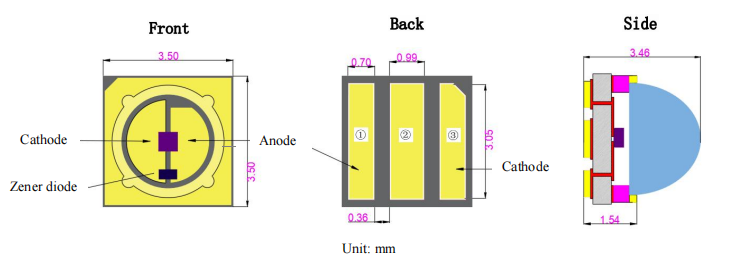

• Device Dimension

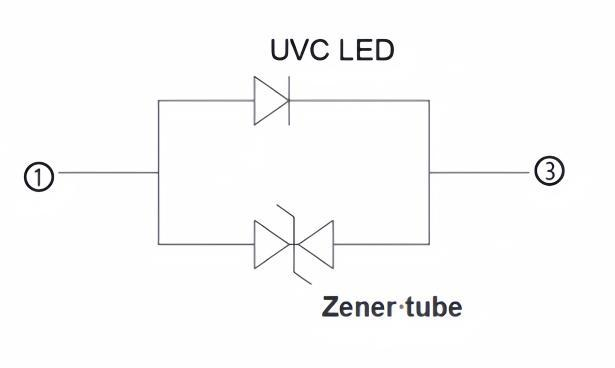

• Electrical Internal Circuit
Electro-Optical Parameters
• Photoelectric Parameters and SPEC Range @ 100 mA (Ta = 25 ℃, RH = 40%)
| Item (Symbol) | Parameters |
| Peak wavelength (WLP) | If=100mA, 260~280nm |
| Spectra Half Width (Δ λ) | If=100mA, 7~13nm |
| Optical Power (Po) | If=100mA, 15~50mW |
| Forward Voltage (Vf) | If=100mA, 5~7V |
| Radiation Angle (2θ 1/2) | If=100mA, 20, 30, 40 2θ½ Deg |
| Reverse Current (Ir) | Vr=5V, 0~1μA |
| Thermal Resistance: Rth (j-s) | If=100mA, ≤20℃/W |
• Wavelength Bin Structure:
| Bin Code | Range (nm) |
| W01 | 260~270 |
| W02 | 270~280 |
• Optical Power Bin Structure:
| Bin Code | Range (mW) |
| P054 | 15~20 |
| P055 | 20~25 |
| P056 | 25~30 |
| P057 | 30~35 |
| P058 | 35~40 |
| P105 | 40~50 |
• Voltage Bin Structure:
| Bin Code | Range (V) |
| V11 | 5.0~5.1 |
| V12 | 5.1~5.2 |
| V13 | 5.2~5.3 |
| V14 | 5.3~5.4 |
| V15 | 5.4~5.5 |
| V16 | 5.5~5.6 |
| V17 | 5.6~5.7 |
| V18 | 5.7~5.8 |
| V19 | 5.8~5.9 |
| V1A | 5.9~6.0 |
| V1B | 6.0~6.1 |
| V1C | 6.1~6.2 |
| V1D | 6.2~6.3 |
| V1E | 6.3~6.4 |
| V1F | 6.4~6.5 |
| V1G | 6.5~6.6 |
| V1H | 6.6~6.7 |
| V1I | 6.7~6.8 |
| V1J | 6.8~6.9 |
| V1K | 6.9~7.0 |
Characteristic Curve
Table Overview for UVLEDTEK
UV-C SMD
| Item | LS2MHAC | LS2AHAC | LS4AHAC |
| Voltage (V) | 5~7 | 5~7 | 5~7 |
| Power (mA) | 40 | 100 | 350 |
| Optical Power (mW) | 6~15 | 15~50 | 50~175 |
| Wavelength (nm) | 260~280 | 260~280 | 260~280 |
| Radiation Angle | 20, 30, 40 2θ½ | 20, 30, 40 2θ½ | 20, 30, 40 2θ½ |
| More Details | Learn More | Learn More | Learn More |
| Item | LS2MHAA | LS2AHAA | LS4AHAA |
| Voltage (V) | 5~7 | 5~7 | 5~7 |
| Power (mA) | 40 | 100 | 350 |
| Optical Power (mW) | 6~15 | 15~50 | 50~175 |
| Wavelength (nm) | 260~280 | 260~280 | 260~280 |
| Radiation Angle | 50, 60, 70 2θ½ | 50, 60, 70 2θ½ | 50, 60, 70 2θ½ |
| More Details | Learn More | Learn More | Learn More |
| Item | LS2MQBB | LS2AQBB | LS4AQHB |
| Voltage (V) | 5~7 | 5~7 | 5~7 |
| Power (mA) | 40 | 100 | 350 |
| Optical Power (mW) | 6~15 | 15~50 | 50~175 |
| Wavelength (nm) | 260~280 | 260~280 | 260~280 |
| Radiation Angle | 110, 120, 130 2θ½ | 110, 120, 130 2θ½ | 110, 120, 130 2θ½ |
| More Details | Learn More | Learn More | Learn More |
