LS003
UVLEDTEK LS003 is a food-grade UVC LED dynamic sterilization module specially designed for water purification scenarios. It uses the third-generation semiconductor high-power UVC LED chip, supports 270-280nm deep ultraviolet broad-spectrum sterilization, and has a sterilization rate of >99.99%. Its fluid dynamics modeling design can achieve 1L/min sterilization. It ensures no mercury, no ozone, and zero chemical residues, and its energy consumption is 80% lower than that of traditional mercury lamps. It has IP68 waterproof rating and food-grade materials. It is particularly suitable for pet water dispensers, countertop water dispensers, humidifiers, household water dispensers, household water purifiers, pipeline machines, commercial water dispensers, industrial water dispensers, smart toilets, campus pipeline direct drinking water and other scenarios to ensure that drinking water is healthier and safer.
Features
• UVC LED module for ≤1LPM flowing water
• Fast sterilization speed
• Kill 99.99% of bacteria, viruses and other harmful substances in water
• Using UVC-LED, no mercury and no chemicals
• Radiation angle 2θ½ 120°
• Plug and play design, easy to configure
• Long life, low light decay, high reliability
• IP68 waterproof rating and food-grade materials
Specification

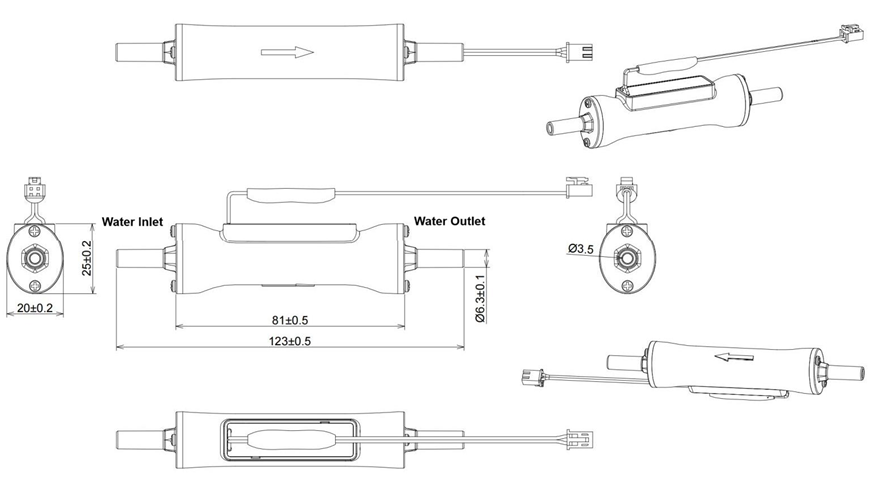

Structure and Dimensions
• Overall Module Structure
Technical Parameters
• Module
| Item (Symbol) | Parameter |
| Driving Mode | Constant voltage drive |
| Rated Voltage (V) | 12V |
| Rated Input Current (I) | 110mA |
| Rated Power (P) | ≤1.5W |
| Number of LEDs (N) | 2 pcs |
• UVC LED
| Item (Symbol) | Parameter |
| Radiation Power (LOP) | ≥25mW |
| Peak Wavelength (λp) | 270~280nm |
| Radiation Angle (2θ½) | 120° |
| Forward Voltage (Vf) | 5.1~6.9V |
| HBM ESD Level (ESD) | 2kV |
• Working Conditions
| Item (Symbol) | Parameter |
| Temperature (T) | -40~65°C |
| Relative Humidity (RH) | 0~95%RH |
• PCBA Core Component List
| Component | Specification |
| PCB board, 1pcs | Material: AL Dimension: 41*11.5*1.0mm |
| UVC LED, 2pcs | Model: LS2AQBB |

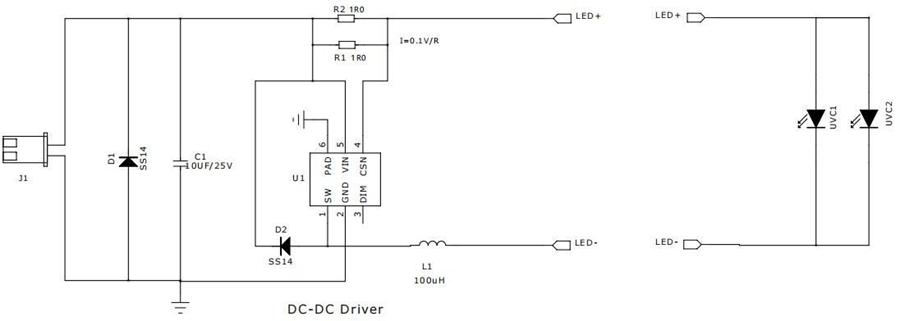

Product Electrical Schematic
Table Overview for UVLEDTEK
UV-C LED Module
| Item | UVC024 | LS003 | ZYGLS02 | ZYGLS03 |
| Voltage (V) | 24 | 12 | DC12-24 | DC12-24 |
| Power (W) | ≤1.6 | ≤1.5 | ≤8 | ≤10 |
| Optical Power (mW) | ≥10 | ≥50 | ≥180 | ≥315 |
| Wavelength (nm) | 270-280 | 270-280 | 260-280 | 260-280 |
| Sterilizing Rate | ≥99.99% | ≥99.99% | ≥99.99% | ≥99.99% |
| Luminous Angle | 120° | 120° | 120° | 60° |
| Flux (L/min) | / | 1 | ≤5 | 7 |
| Dimensions (mm) | 31.5*31.5*24.3 | 124*23*18 | 29.6*26.6*133 | Φ51.5*87 |
| More Details | Learn More | Learn More | Learn More | Learn More |
