ZYGLS03
In the pursuit of high-quality drinking water, we bring innovative UVC LED dynamic sterilization modules. ZYGLS03 is equipped with advanced third-generation semiconductor high-power UVC LED chips, accurately locking the 260-280nm deep ultraviolet broad spectrum, directly hitting the core of bacteria and viruses with thunder, efficiently destroying their genetic material, and the sterilization rate is steadily over 99.99%, tightening the "safety valve" for your water safety. No mercury or ozone is produced throughout the process, eliminating secondary pollution, and zero chemical residue allows you to drink with peace of mind. The energy consumption is sharply reduced by 80% compared with mercury lamps, which greatly reduces the trouble of frequent replacement and continuously and stably protects your water health. The strong sterilization flow rate of 7L/min is particularly suitable for pet water dispensers, countertop water dispensers, humidifiers, household water dispensers, household water purifiers, pipeline machines, commercial water dispensers, industrial water dispensers, smart toilets, campus pipeline direct drinking water and other scenarios.
Features
• UVC LED module for ≤7LPM flowing water
• Quick sterilization response
• 99.99% water sterilization rate, can effectively remove harmful substances in dynamic water
• Using UVC-LED, environmentally friendly and healthy non-toxic materials
• Plug and play design, easy to install and debug
• Long life, low light decay, high reliability
Specification

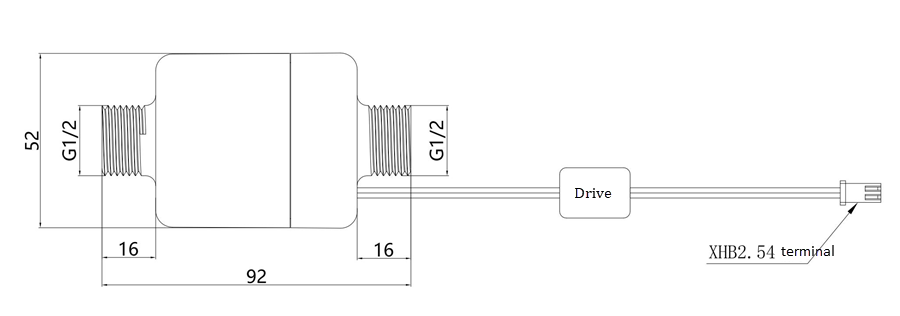

Structure and Dimensions of Module
Technical Parameters
• Module
| Item (Symbol) | Parameter |
| Drive | Constant voltage |
| Rated voltage (V) | 12-24V |
| Rated Power (P) | ≤10W |
| SMD No. (N) | 7pcs |
| Flow rate (L/min) | 7L/min |
| Radiation Power (W) | ≥315mW |
| Disinfection Rate (%) | ≥99.99% |
| Waterproof Grade (IP) | IP65 |
| Working/Storage temp. | Working @ 0~45℃; Storage @ -40~65℃ |
• SMD Parameters
| Item (Symbol) | Parameter |
| Radiation Power (LOP) | >45mW |
| Peak Wavelength (λp) | 260~280nm |
| Radiation Angle (2θ½) | 2θ½ 60° |
| Forward Voltage (Vf) | 5.1~6.9V |
| HBM ESD Level (ESD) | 2kV |
• Working Conditions
| Item (Symbol) | Parameter |
| Temperature (T) | -40~65°C |
| Relative Humidity (RH) | 0~95%RH |
Table Overview for UVLEDTEK
UV-C LED Module
| Item | UVC024 | LS003 | ZYGLS02 | ZYGLS03 |
| Voltage (V) | 24 | 12 | DC12-24 | DC12-24 |
| Power (W) | ≤1.6 | ≤1.5 | ≤8 | ≤10 |
| Optical Power (mW) | ≥10 | ≥50 | ≥180 | ≥315 |
| Wavelength (nm) | 270-280 | 270-280 | 260-280 | 260-280 |
| Sterilizing Rate | ≥99.99% | ≥99.99% | ≥99.99% | ≥99.99% |
| Luminous Angle | 120° | 120° | 120° | 60° |
| Flux (L/min) | / | 1 | ≤5 | 7 |
| Dimensions (mm) | 31.5*31.5*24.3 | 124*23*18 | 29.6*26.6*133 | Φ51.5*87 |
| More Details | Learn More | Learn More | Learn More | Learn More |
